The development of models for the microscopic simulation of traffic at the Center for Parallel Computing started in 1992 with the doctoral thesis of Kai Nagel, who in cooperation with Michael Schreckenberg implemented simple rules for car following behaviour in a cellular automaton (CA) model.

In order to do fast microscopic traffic simulation we use a very restricted model of car dynamics. The street is divided into cells of length 7.5 m each, and every cell can be either occupied (there is a car) or empty. Each car has a very limited amount of associated information, the most important one being its velocity, which can take integer values from zero to six. The system is updated in discrete steps, where each time-step corresponds roughly to one second. The fact that everything is discrete (time, space, and state) defines the model as a cellular automaton (CA) (see also Vorlesung: Physik des Strassenverkehrs (Andreas Schadschneider), in German).

Updating
Rules")?>

We have to specify the CA-rules. They are very roughly based on a more complicated description of car-following dynamics. However, the rules implemented are a kind of caricature of those more complicated descriptions in order to get a desired macroscopic behaviour, and not to mirror the microscopic dynamics as faithful as possible (which seems to be a very hard job, though).

The update rules are modelled according to the following requirements:

• Cars always want to drive with their maximum speed V_max .
• They don't want to crash.
• Not every car drives optimally.

In order to achieve this, we have four rules, which are updated in parallel: Let Gap denote the number of empty sites ahead then the state of the system is updated as follows:

if ( (v < Gap) && (v < Vmax) ) v = v + 1



elseif (v > Gap) v = Gap



if ( (random() < Pbrake) && (v > 0) ) v = v - 1



xnew = xold + v

The rule 3. makes this model a stochastic CA. P_brake is the probability for reducing the speed by one velocity step compared with the optimal strategy to drive as fast as possible. Thus on the one hand individual driving strategies are included and on the other hand the stochastic component enforces the complex dynamic shown by the model.

An Example")?>

In the time-space-plot (see figure 1) the colors represent the velocity (rising from black, red, yellow to green). The figure which shows the velocity-distribution of a roundabout simulation with several hundred cars in the system is very similar to what can be seen from an aerial photograph.
This simulation is written in PostScript. You can run it on your computer if you have a PostScript viewer such as GhostView. Please klick here to start the simulation (PostScript is not very fast). If your are interested in the details of the PostScript code, you can study the the PostScript file here.

figure 1: CA velocities in a time-space-plot

The migration to the continous limes of the Nagel-Schreckenberg model is an obvious and finally met in the smooth braking model, developed at the ZAIK by Stefan Krauß.

Summing Up")?>

This very simple model leads to very realistic looking macroscopic results: e.g. the fundamental diagrams of a simulation of the model above looks very similar to the ones, that can be measured with counting devices. An example is shown below, where we have plotted the flow in cars per second as function of car density, which is measured relative to the maximal possible one. This plot shows the typical form: for small flows we have flow increasing with density, while for large flow-values the flow decreases with density until it reaches zero for maximal density. The simulation is done for a two-lane circular road with several thousand cars and varying densities.

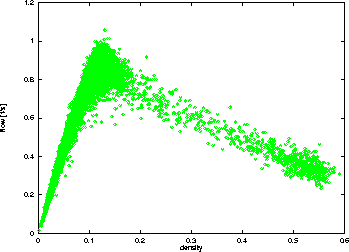

Fundamental diagram of a CA: Several thousand cars drive in a twolane roundabout. You see the traffic flow in dependance of the traffic density.
